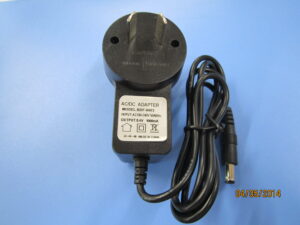

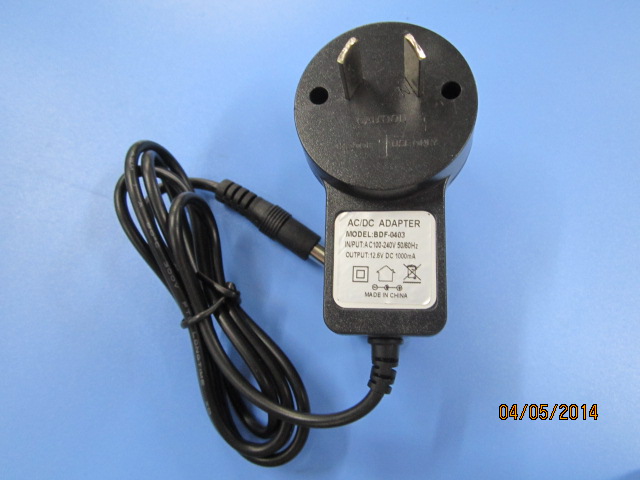

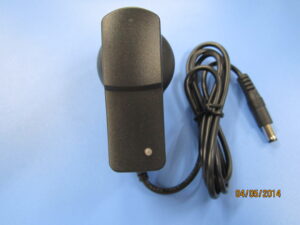

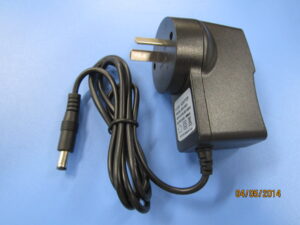

*Wall-Mount Lithium battery charger
(Default: 16.8V 1A, Connector: 5.5×2.1)
Specifications
- Input Voltage: AC 100–240V Wide Voltage, Global Universal
- Input Frequency: 50–60Hz
- Output Voltage: 16.8V1A
- Output Current: 1A
- DC Connector: 5.5×2.1
- Output Voltage Accuracy: ±5%
- DC Output Cable Length: 1m
- Modulation Mode: PWM (Pulse Width Modulation)
- Output Ripple & Noise: ≤ 100mVp-p
- Efficiency: 80%–85%
- Protection: Short Circuit Protection, Over Current Protection, Over Voltage Protection
- Operating Temperature: 0℃ ~ +50℃
- Storage Temperature: -20℃ ~ +85℃
- Operating Humidity: 10%–95% RH
- Aging Test: 100% Full Load Aging
Features
- Wide input voltage range, suitable for global use
- Low ripple, high efficiency, low temperature rise, long service life
- Good anti-interference performance, high reliability
- Excellent insulation performance, high dielectric strength
- Low no-load power consumption, energy saving and eco-friendly
- Full series full-load high-temperature aging, stable quality
Applications
Security equipment, LED lighting, LCD monitors, communication equipment, audio & video products, digital products, radios, telephones, CD/VCD players, language repeaters, walkie-talkies, computers, electronic organs, game consoles, small TVs, medical and health care devices, electronic instruments, and other small electronic devices.
